Product Features
Reusable, free of residual marking, easy adhesion and detachment

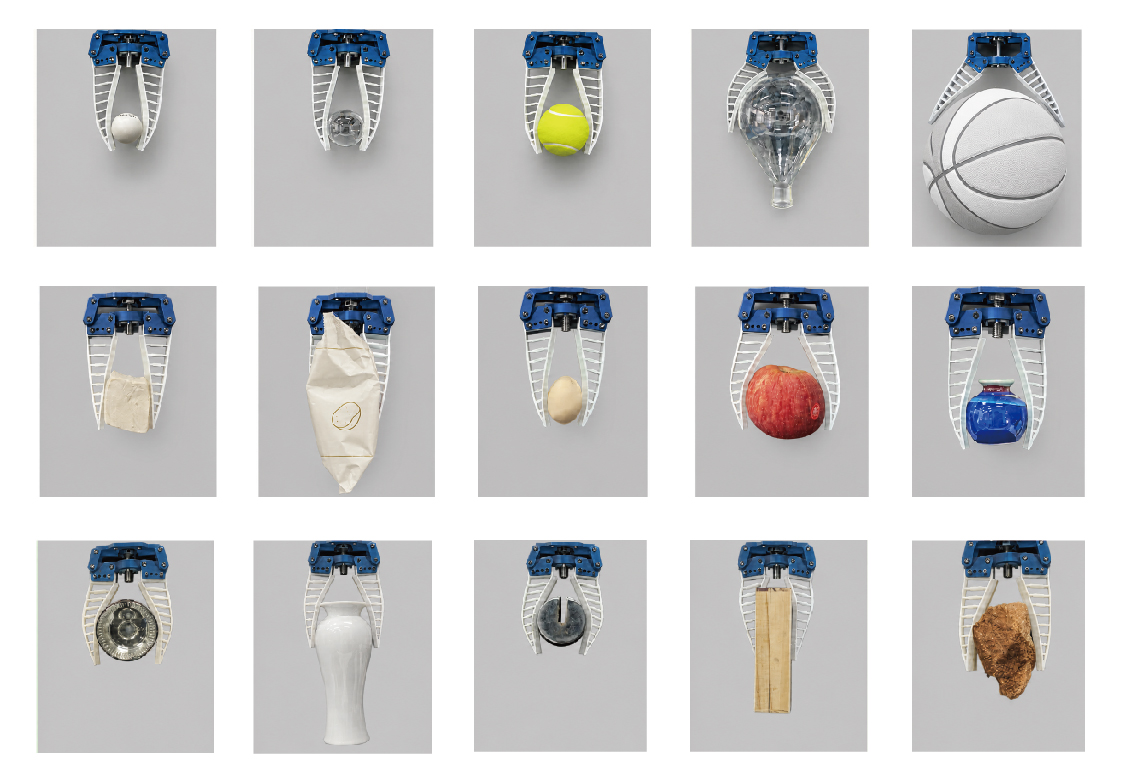

Suitable for flexible grasping and fixing of smooth planes, curved surfaces and other irregular surfaces.

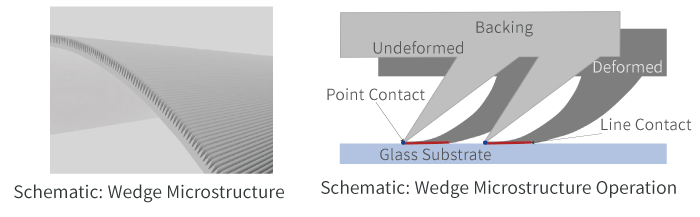

The unidirectional adhesive force of wedge-shaped structures greatly simplifies the design of detachment mechanisms.
Achieves stable adhesion without adhesive glue; no residual glue and no surface damage after removal.
Customizable structures and materials to meet interface manipulation demands under various environmental working conditions.
| NO. | Item | Specification |
|---|---|---|
| 1 | Model | AD-GTX |
| 2 | Materials | Customizable: Silicone, Fluororubber, TPE, TPR, TPU, etc. |
| 3 | Normal Adhesion Force | 0.14n/c㎡ |
| 4 | Positive Tangential Friction Force | 15 N/cm² （at a preload of 2.5N) |
| 5 | Negative Tangential Friction Force | 2 N/cm² （at a preload of 2.5N) |
| 6 | Operating Temperature | -100 ℃~260 ℃* |
* Note: Different materials correspond to different applicable temperature ranges
