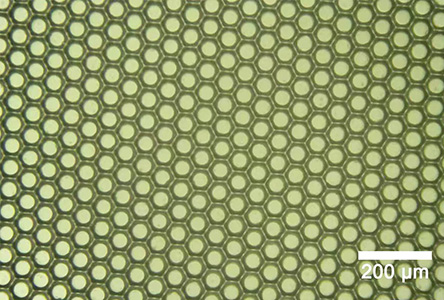

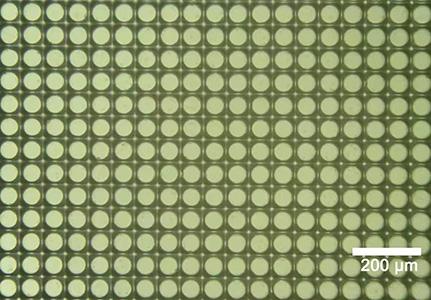

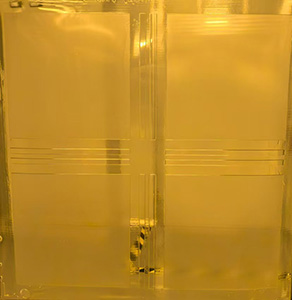

We produce flexible printing plates specially designed for alignment film printing on liquid crystal panels. Tiny concave-convex patterns (halftone dots) are formed on the plate surface to maintain uniform ink distribution, enabling high-quality thin-film printing.
It is mainly adopted for printing alignment films (PI films) of STN, C-STN and TFT-grade LCD products. It can print PI films that are thinner, more uniform and with higher dimensional precision, making it a dedicated matched tool for alignment film printing in the LCD industry at present.
 |  |  |
| Precision Grade | High Precision (Grade 1) | Ultra-High Precision (Grade 2) |
|---|---|---|
| Dot Density / Aperture Ratio | 300dpi/30-50% | 400dpi/35-45% |
| Screen Angle / Dot Shape | 45°/circle | 75°/circle |
| Protrusion Dimension Tolerance | ±0.085mm | ±0.085mm |
| Substrate Thickness | 1.8–2.1 mm (Total plate thickness: 2.84 mm) | 1.4–1.7 mm (Total plate thickness: 2.24 mm) |
| Cutting Tolerance | ±1mm | ±1mm |
Product Technical Specifications
Model: AD-APR-H, Material: Polybutadiene
Maximum Overall Dimension: 650 mm × 550 mm
Available Thickness: 2.24 mm, 2.28 mm, 2.84 mm
Dot Condition: Uniform and consistent across the plate surface
Dot Peeling: Continuous dot loss shall not exceed 3 dots; max. 2 occurrences per raised area, no more than three occurrences per plate
Dot Bridging: Continuous connected dots shall not exceed 4 dots; max. 2 occurrences per protrusion block, total ≤ 3 occurrences per single plate
Line Defects: (1) Plates with obvious creases or scratches visually observed on protrusions shall be rejected; (2) Edge residual glue or damaged dots shall not exceed 2 rows
Air Bubbles & Spots: Bubbles within 0.5 mm are acceptable on condition that no dots are damaged
Surface Contaminants & Foreign Matter: Zero tolerance; a tiny amount of removable contaminants is permissible
